Auto Wire Feeding Machine
  • Thumbnail 0
  • Thumbnail 1

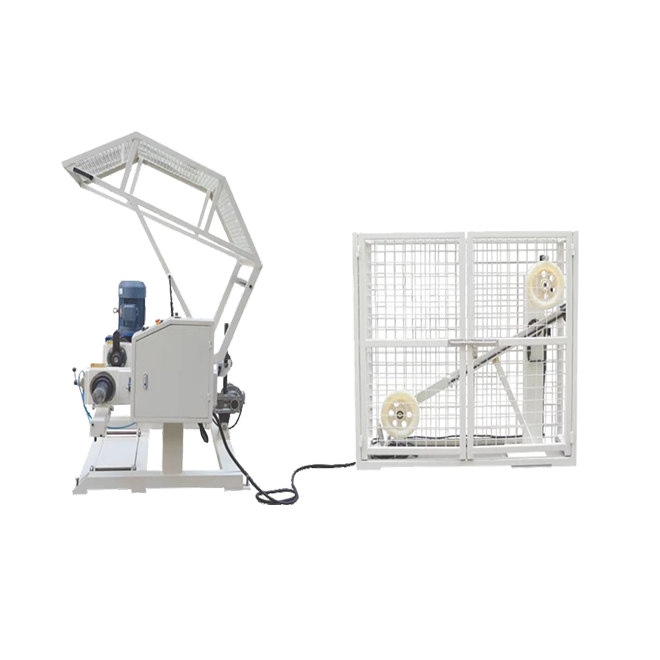

Auto Wire Feeding Machine

Integrated with stripping machines: Auto-feeding activates when storage rack reaches preset height
ModelWG-901-800A/WG-SX1250/WG-SX1500
Cable Diameter3mm-30mm
Max Spool Diameter500-800mm
Wire Reel Width350-600mm
Max Spool Weight800kg
Lifting SystemGear Reducer + Motor Lifting
Inquiry Now
Product Introduction

Features

  • Integrated with stripping machines: Auto-feeding activates when storage rack reaches preset height.
  • Optional wire end detection function.
  • Motorized spool lifting system with electric elevation.
Model WG-901-800A WG-SX1250 WG-SX1500
Cable Diameter 3mm-30mm 5mm-45mm 5mm-45mm
Max Spool Diameter 500-800mm 600-1250mm 800-1500mm
Wire Reel Width 350-600mm 500-950mm 600-950mm
Max Spool Weight 800kg 1500kg 2000kg
Lifting System Gear Reducer + Motor Lifting Gear Reducer + Motor Lifting Gear Reducer + Motor Lifting
Power Supply Three-phase 380V Three-phase 380V Three-phase  380V
Dimensions 2170*1560*1500mm(Top shaft guard extends 350mm) 2500*1900*1600mm 2500* 1900* 1600mm
