Auto Winding Machine
  • Thumbnail 0
  • Thumbnail 1

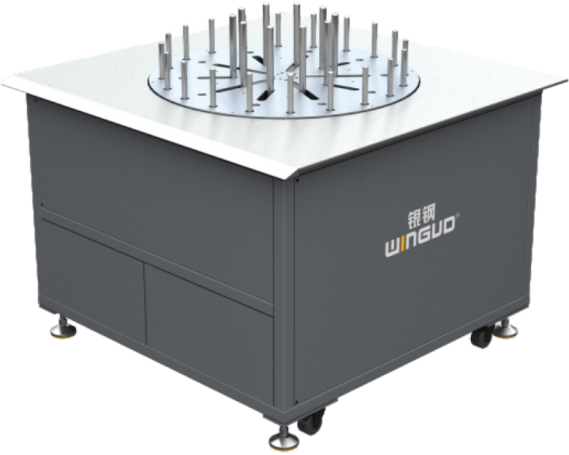

Auto Winding Machine

WG-168 series coiler automatically winds long cut wires. Interconnected operation with cutting/stripping machines enables automatic coiling, stopping, and retracting with user-friendly controls.
ModelWG-168C / WG-168E / WG-168F
Control MethodElectrical Control
Coiling RangeOuter Diameter 210/320mm
Coiling RodAdjustable Inner Diameter with Vertical Retraction, Two-position Outer Diameter Adjustment
Coiling Rod RangeInner diameter 120-280mm (adjustable)
Infeed Height930mm
Inquiry Now
Product Introduction

Features

  • WG-168 series coiler automatically winds long cut wires. Interconnected operation with cutting/stripping machines enables automatic coiling, stopping, and retracting with user-friendly controls.
  • Adjustable inner diameter and customizable outer diameter specifications adapt to specialized coiling requirements based on cable characteristics.
  • Space-efficient coiling solution for cables over 5 meters, facilitating handling and storage of long wires.
Model WG-168C WG-168E WG-168F
Control Method Electrical Control Electrical Control Electrical Control
Coiling Range Outer Diameter 210/320mm Outer Diameter 380/480/580mm Outer Diameter 580/700mm
Coiling Rod Adjustable Inner Diameter with Vertical Retraction, Two-position Outer Diameter Adjustment Adjustable Inner Diameter with Vertical Retraction, Two-position Outer Diameter Adjustment Adjustable Inner Diameter with Vertical Retraction, Two-position Outer Diameter Adjustment
Coiling Rod Range Inner diameter 120-280mm (adjustable) Inner diameter 200-450mm (adjustable) Inner diameter 330-510mm (adjustable)
Infeed Height 930mm 970mm 1030mm
Coiling Height <90mm 120mm 150mm
Wire Diameter Φ3-13 mm Φ5-25mm Φ18-45mm(Depending on the cable)
Rated Voltage AC220V 50/60Hz   Power (0 . 25kW) AC220V 50/60Hz   Power (0.75kW) AC220V 50/60Hz   Power (1.5kW)
Weight 100kg 260kg 305kg
Dimensions 650* 550* 1050mm 950×850×1360mm 1250* 1200* 1250mm
