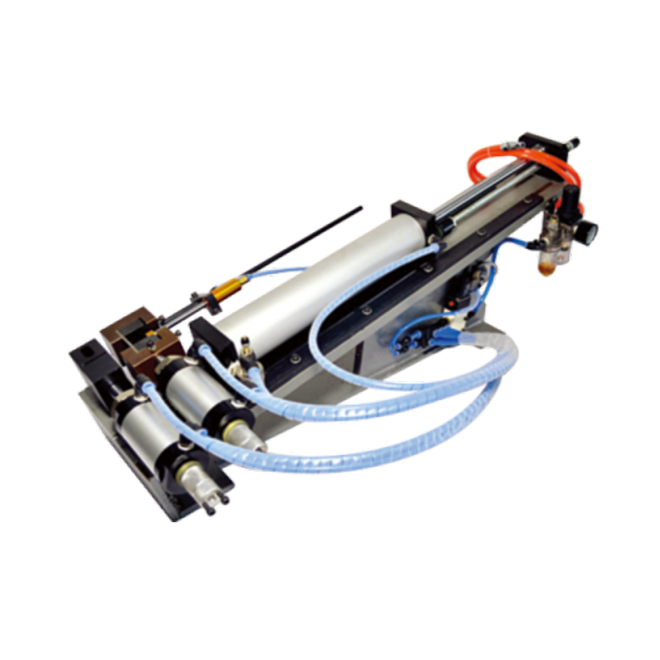

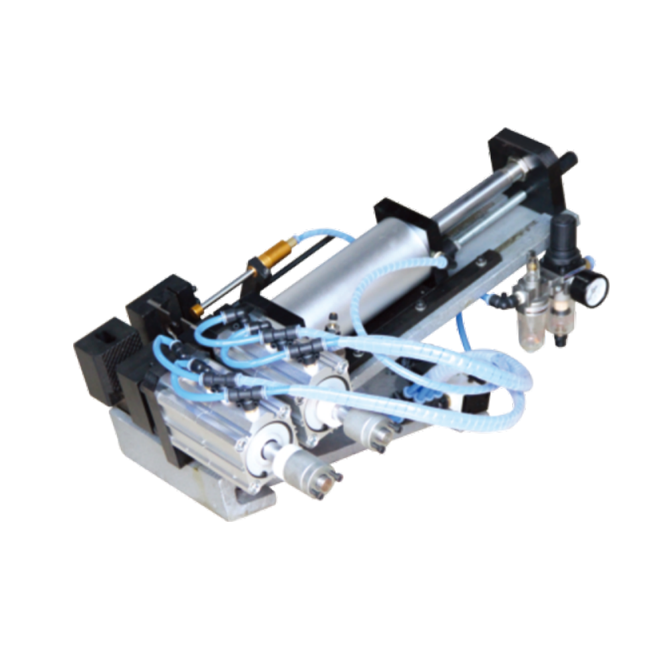

Pneumatic-Electric Stripping Machine
  • Thumbnail 0
  • Thumbnail 1
  • Thumbnail 2

Pneumatic-Electric Stripping Machine

Double-action cylinder, no spring breakage.
ModelWG-305 / 310 / 315 / 330 / 416
Stroke50mm
Barometric Pressure5-7kg
Stripping Diameter5-7mm
Stripping Length50mm
Inquiry Now
Product Introduction

Features

  • Double-action cylinder, no spring breakage.
  • Unique  slide,  smooth  reciprocating  stroke,  precise  cutting and peeling.
  • Pneumatic and electric control, light and agile, easy to work.
  • Adjustable  structure,  the   knife   mold   can   be   replaced, applicable to a variety of wire.



Model WG-305 WG-310 WG-315 WG-330 WG-416
Stroke 50mm 100mm 150mm 300mm 150mm
Barometric Pressure 5-7kg 5-7kg 5-7kg 5-7kg 5-7kg
Stripping Diameter 5-7mm 15mm 20mm 20mm 30mm
Stripping Length 50mm 100mm 160mm 300mm 150mm
